S13 Bolt-On Front Tube Frame and Lower Rad Support

Sale Price:$850.00 Original Price:$1,150.00

This product has moved to cagekits.com

THESE ARE MADE TO ORDER.

NOTE: Baseplates require welding to the chassis. Take your time when cutting and fitting to ensure proper alignment of headlights and fenders.

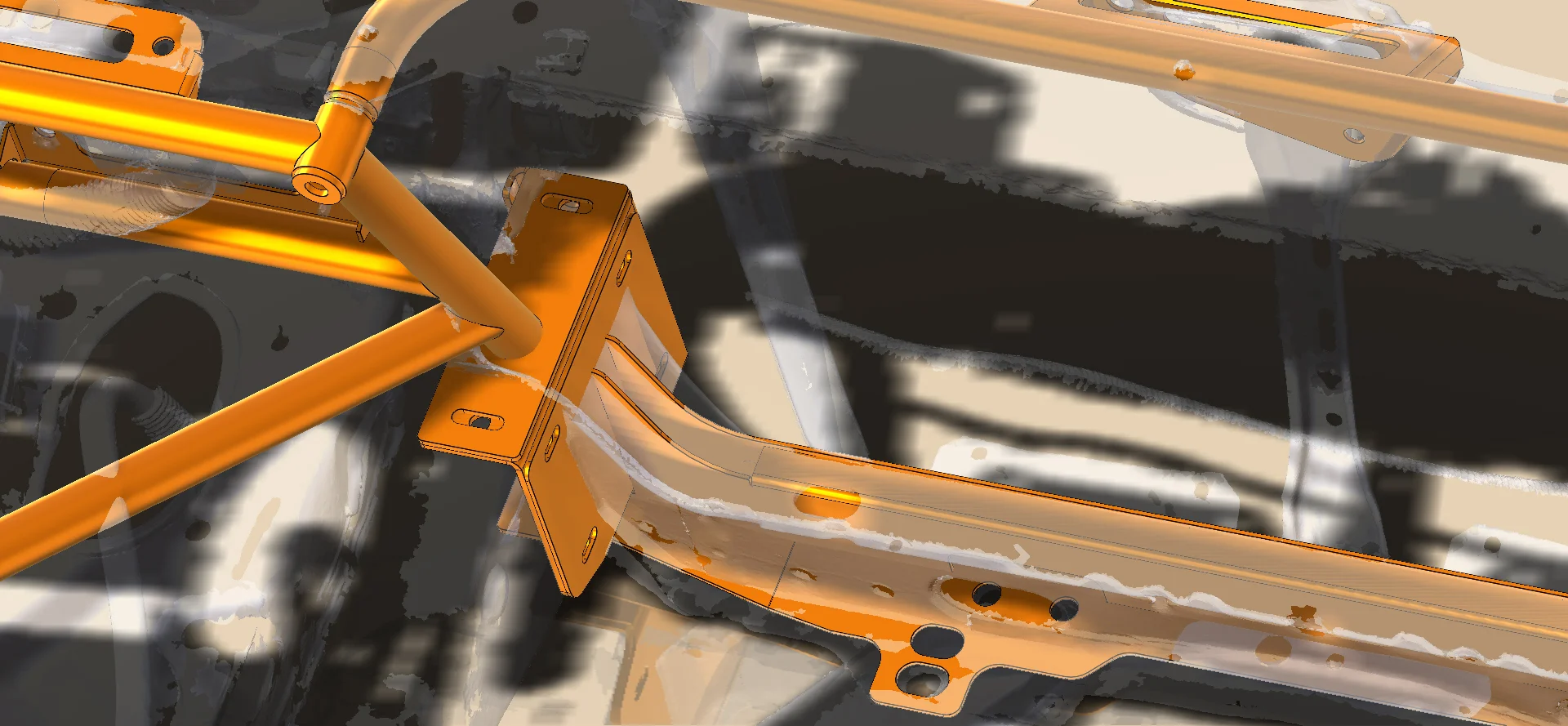

Do you like crashing? Do you love smashing into your friends car? Tired of all that pesky metal getting in the way of motor pulls and angle? Well we have a solution for you. We 3D scan the chassis with a Creaform 3D scanner, and CNC laser cut and bend the tubes with the highest quality and precision. To ensure high precision and quality all tube fronts are hand assembled and visually inspected by Rob "Chairslayer" Parsons.

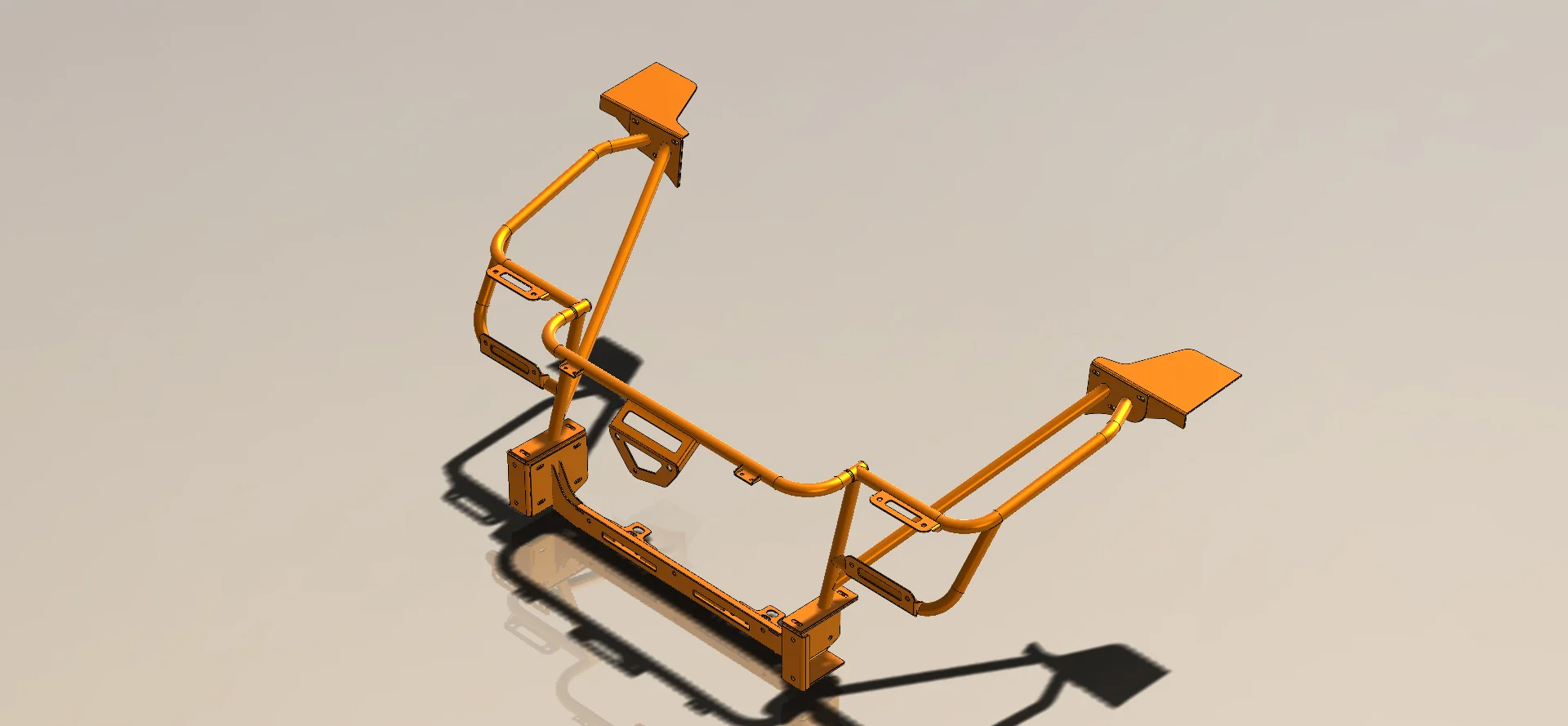

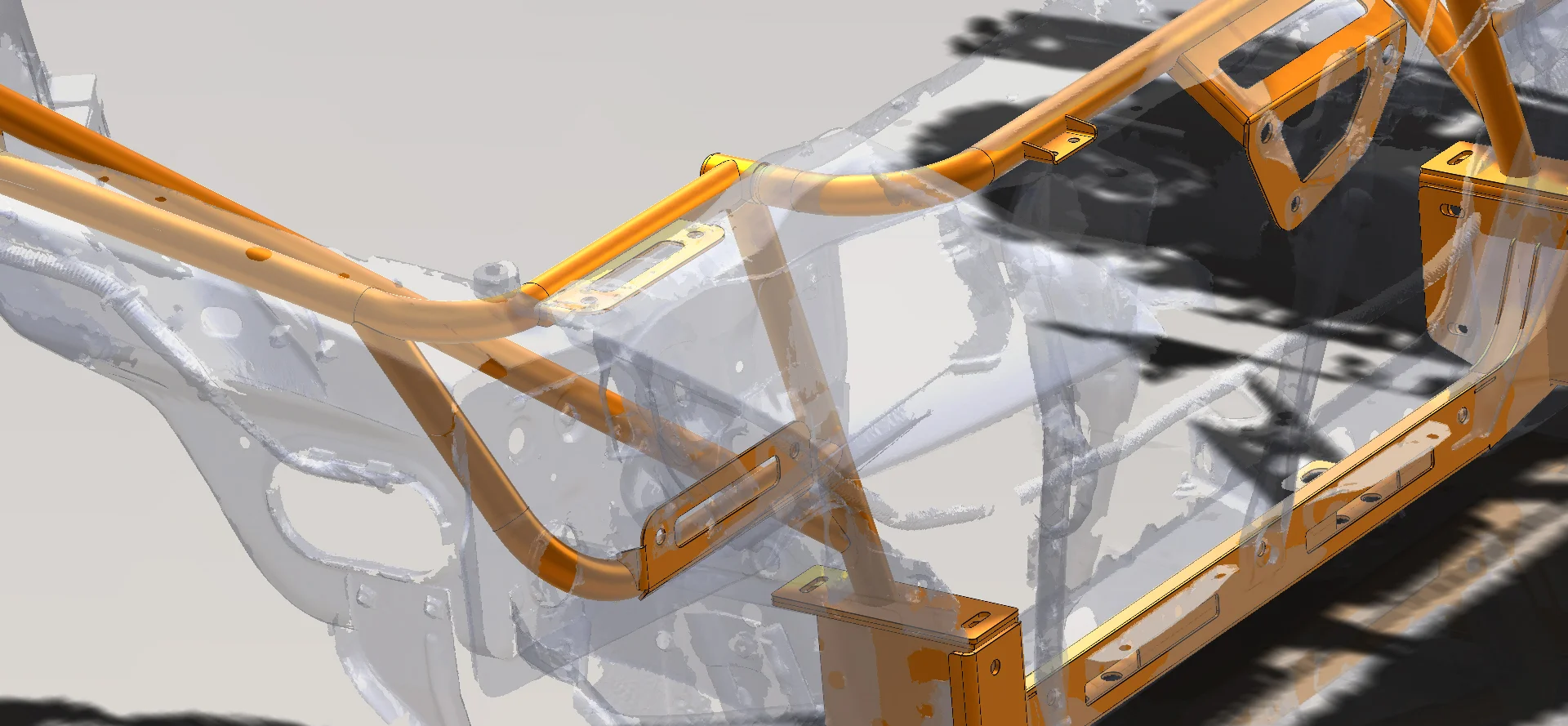

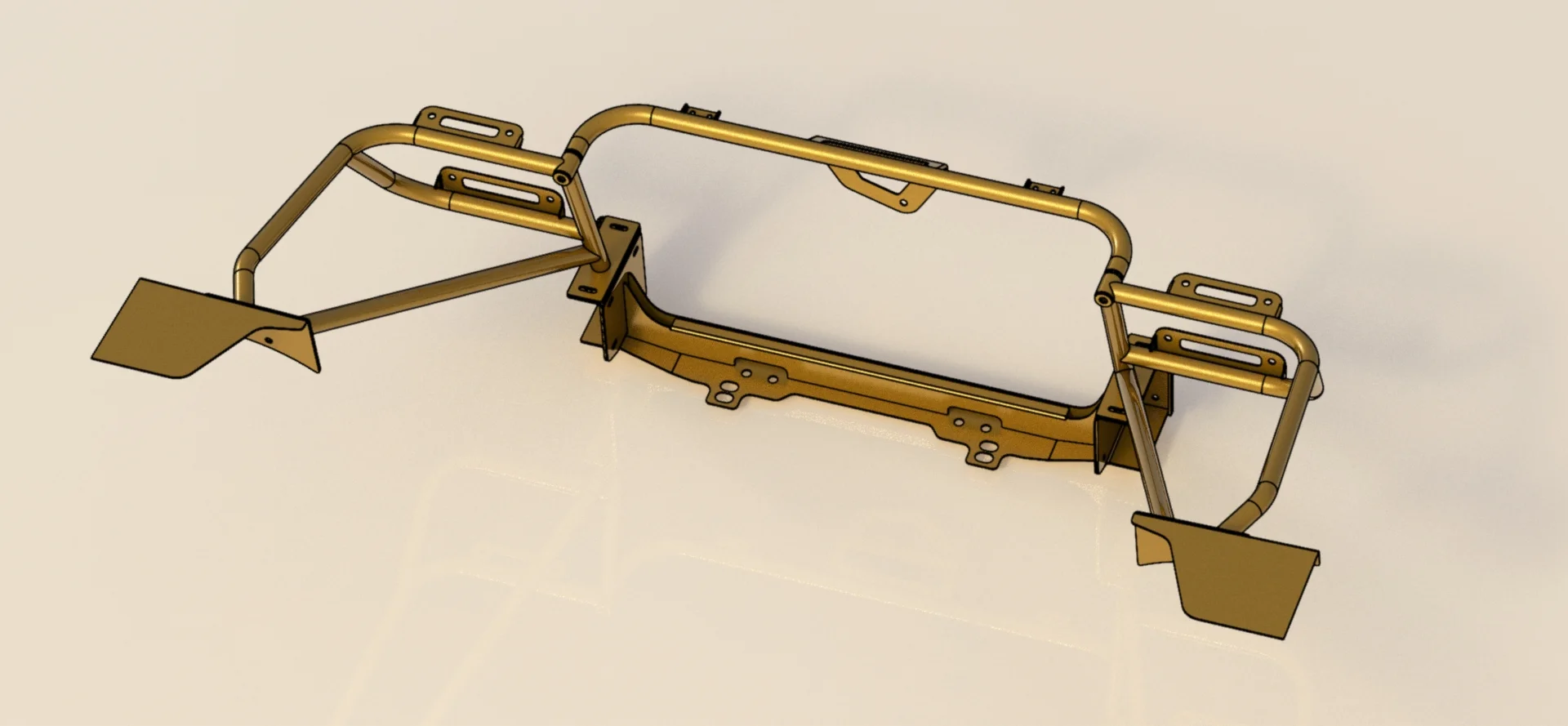

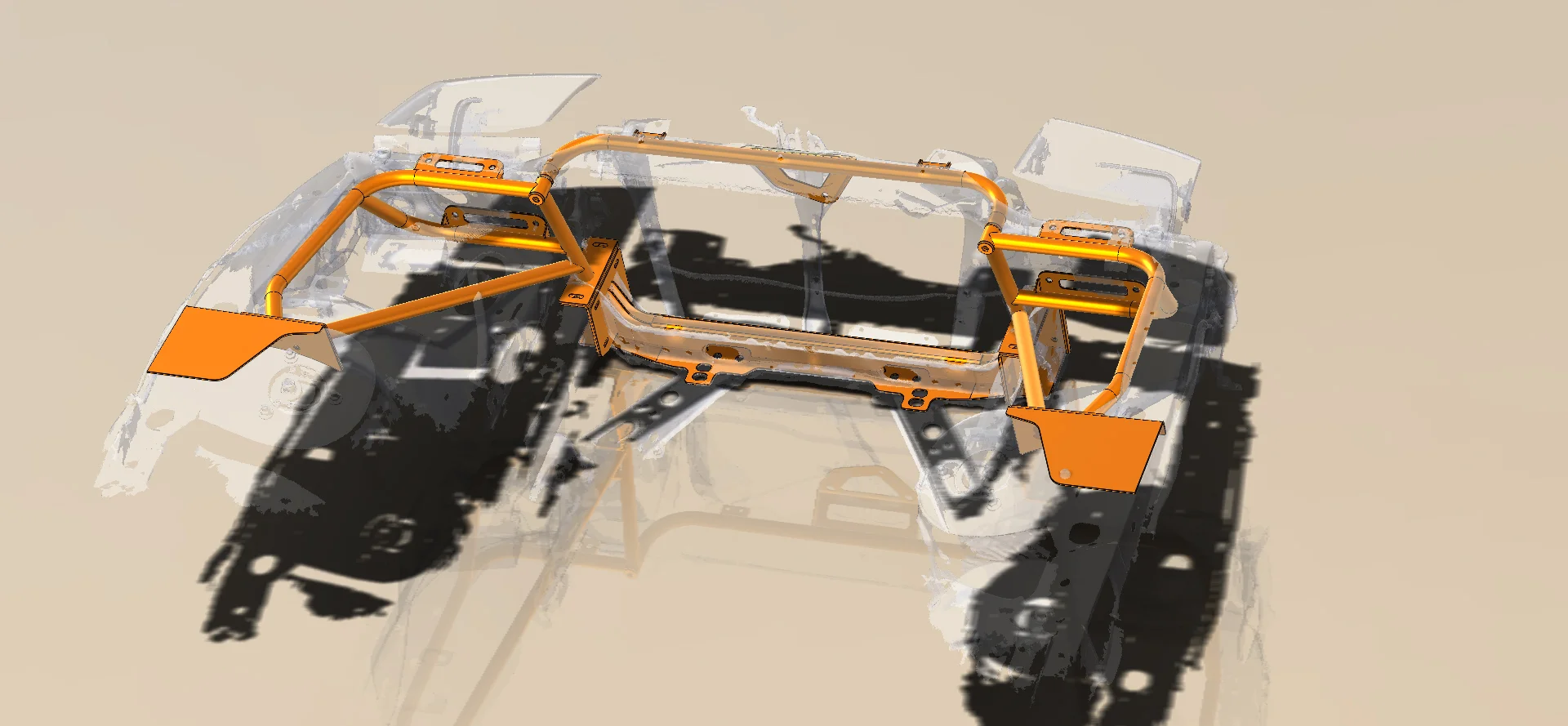

The S13 bolt on front tube frame and slim lower rad support is finally ready. With the redesign of this product to accommodate simplicity and add an additional 1.25" of room up front for a radiator, everyone running RB and JZ setups can finally look no further.

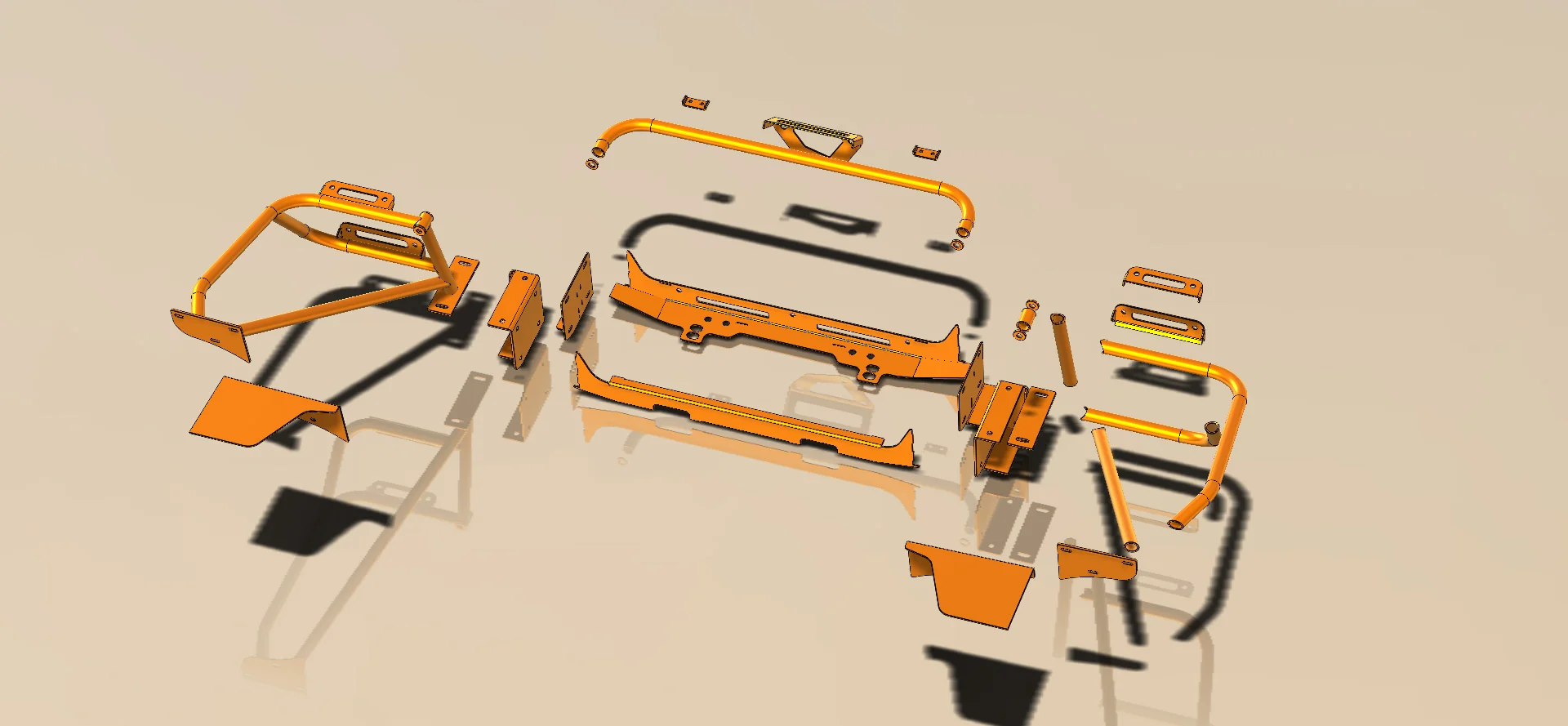

The kit is fully modular and comes apart in 4 pieces. DS Tubes, PS Tubes, lower rad support, and Upper rad support. Tubing is 1"x.095" ERW and the sheetmetal is a mix of 14ga and 11ga O&P steel.

The rad support and tube frame still maintains factory popup light bracket positioning and the factory hood latch can still be used. The kit comes fully CNC laser notched and CNC mandrel bent.

We stitch weld the lower rad support and use threaded inserts for all bolted connections. Metric fasteners are still used so you can retain the factory hardware during your installation.
